50,000 Cycle Life Test Report for Cordless Blind Springs

This test report documents the long-term durability performance of cordless blind springs
under repeated lift-and-release operation, validating mechanical stability, force consistency,
and noise behavior across 50,000 full cycles.

1. Test Objective

The purpose of the 50,000 cycle life test is to verify whether the cordless blind spring
maintains stable torque output, controlled rebound speed, and acceptable acoustic behavior
throughout long-term repetitive use.

In real-world installations, cordless blind springs experience daily cyclic loading.
Insufficient fatigue resistance leads to force drift, mid-position creep, or sudden snap-back —
all unacceptable in commercial and residential products.

2. Test Setup & Conditions

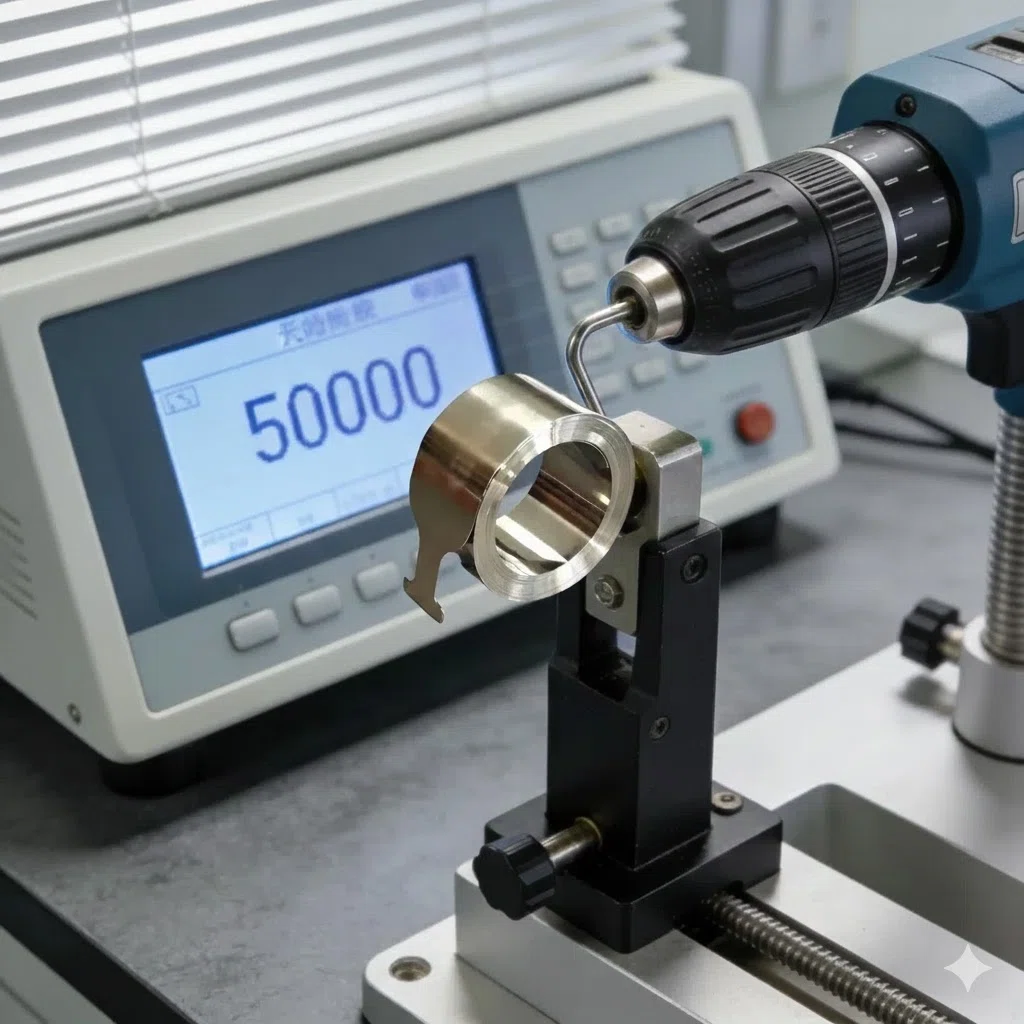

Test method	Automated vertical cycling (full stroke)
Cycle definition	One pull-down + one spring-driven return
Total cycles	50,000 cycles
Load condition	Simulated blind weight within rated torque band
Ambient temperature	20–25°C (controlled indoor lab)
Spring material	301 stainless steel spiral / torsion spring
Housing	POM engineering polymer spring cassette

3. Measurement Criteria

During the test, key performance indicators were monitored at defined intervals
(initial, 10k, 25k, 50k cycles):

• Lift force consistency (top / mid / bottom positions)
• Return speed stability (no acceleration spikes)
• Position holding behavior (no mid-height drift)
• Acoustic change (squeak, chatter, impact noise)
• Visual inspection (spring deformation, surface wear)

4. Test Results Summary

Item	Result
Spring fracture	None observed
Torque degradation	< ±5% across full cycle range
Abnormal noise	None detected
Rebound instability	Not observed
Cassette integrity	No cracking or loosening

5. Engineering Interpretation

The 50,000 cycle life result confirms that the spring system operates well below its fatigue
limit, ensuring long-term reliability in daily-use cordless blind applications.

From an OEM perspective, this test supports:

• Stable user hand-feel over product lifetime
• Reduced warranty claims related to lift failure
• Compatibility with child-safe cordless architectures
• Confidence in large-scale project deployment
